Description
window.productDescription=’
‘;

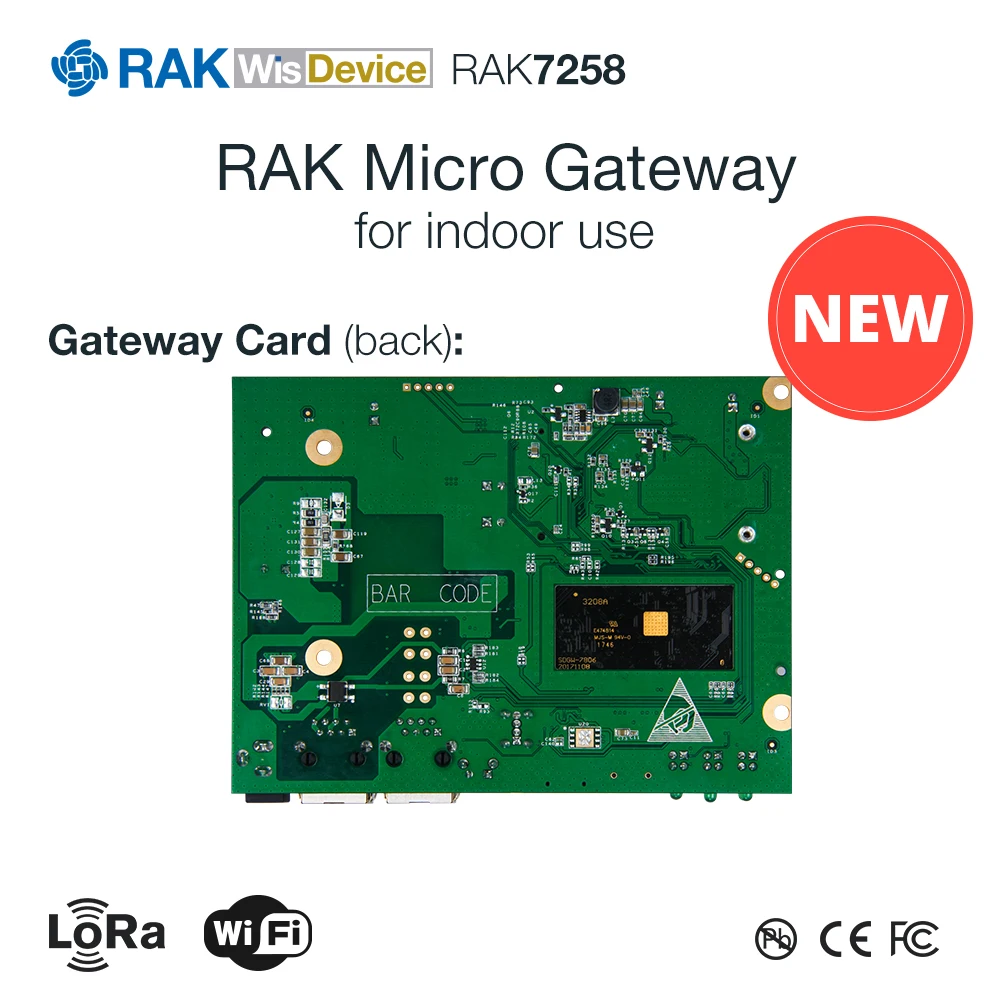

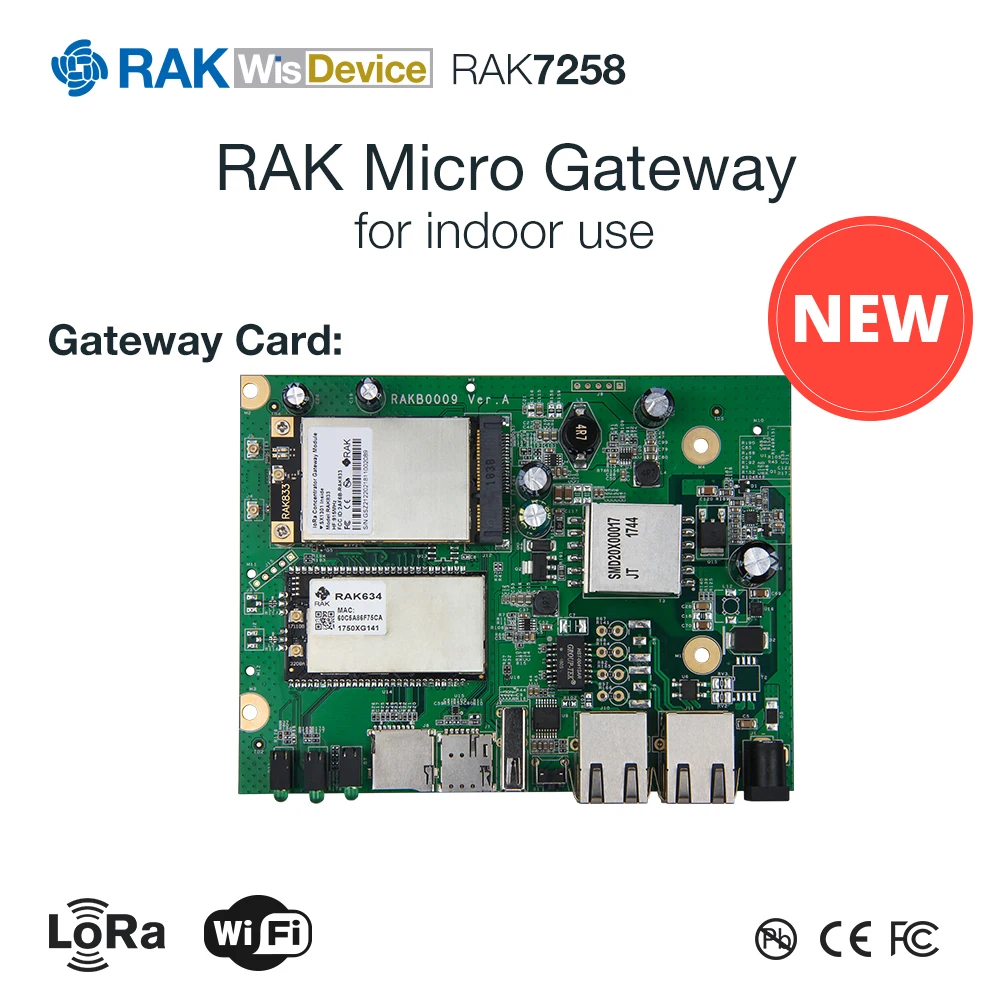

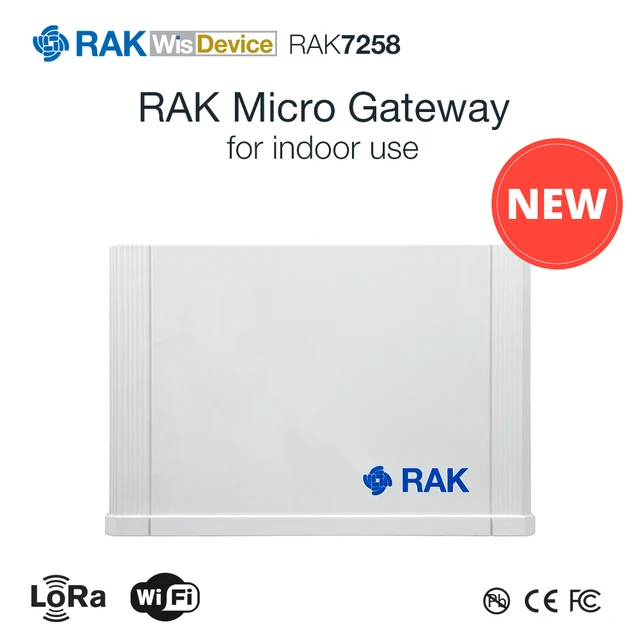

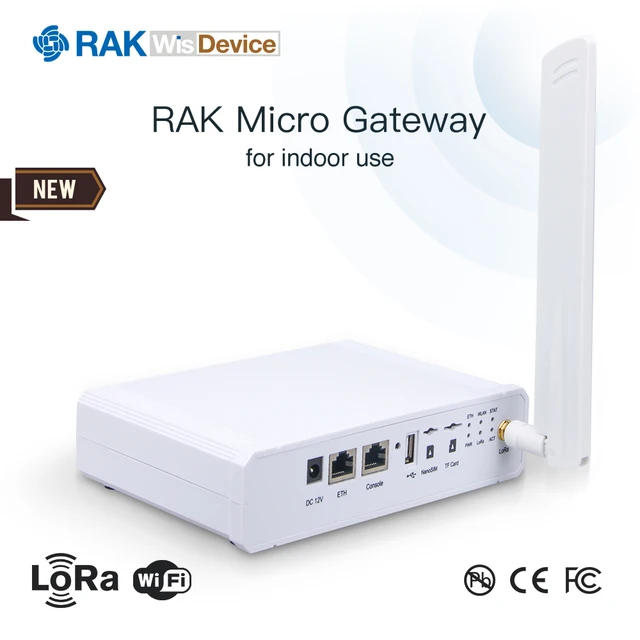

RAK Micro Gateway WisDevice RAK7258 Indoor LoRaWAN Gateway.MT7628, DDR2RAM 128MB,8 Channels
$ 439.24
Additional information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 26 × 19 × 9 cm |
| Type | Connectors |
| Model Number | RAK7258 |
| Products Status | Stock |
| Package | Yes |
| Computing | MT7628, DDR2RAM 128MB |
| WiFi Feature 1 | Frequency: 2.400 – 2.4835GHz |
| WiFi Feature 2 | 802.11b/g/n |
| WiFi Feature 3 | RX Sensitivity: -95dBm (Min) |
| WiFi Feature 4 | TX Power: 20dBm (Max) |
| LoRa M | SX1301 Mini PCIe card |
| LoRa Feature 1 | 8 Channels |
| LoRa Feature 2 | TX Power: 27dBm (Max) |
| LoRa Feature 3 | RX Sensitivity: -142dBm (Min) |
| Cellular | Optional NB-IoT /CatM / LTE 4G |
| Power Supply | PoE (IEEE 802.3af), 42~57VDC |
| Power Consumption | DC 12V-1A |
| ETH | RJ45 (10/100M) |
| LoRa Antenna | 2dB |
| WiFi Antenna | Internal Antenna |
| Ingress Protection | IP30 |
| Enclosure Material | Plastic |
| Weight | 0.3 kg |
| Dimension | 180mm x 120mm x 43mm |
| Operating Temperature | -10 to 55 degree centigrate |
| Installation Method | Ceiling or Wall mounting |
